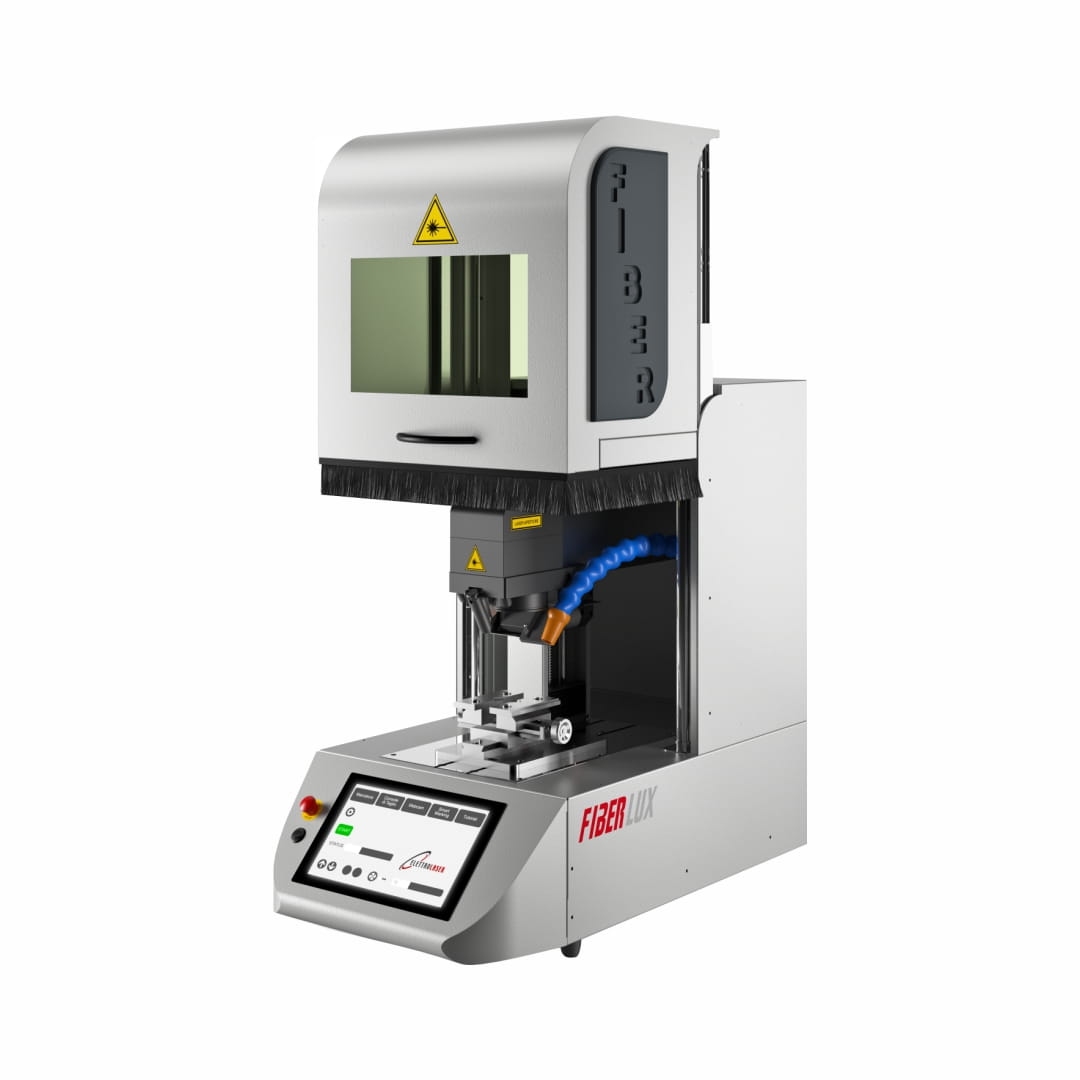

FIBER LUX

FIBER LUX

Laser cutting machines like the FIBER LUX are widely used in various industries, including jewelry manufacturing, for precision cutting of metals and other materials. In the jewelry industry, laser cutting machines play a crucial role in creating precise and intricate designs on metal sheets or pieces used in jewelry production. These machines utilize high-powered lasers to precisely cut through metal, allowing artisans and jewelry manufacturers to create intricate patterns, shapes, or engravings on jewelry components.

FEATURES:-

  • Pulsed fiber laser.
  • Wide Working Space.
  • R-Axis with stepped motor controlled by software.
  • Double Red Pointer for positing object.
  • Multiple cutting process tool.



Category:
The FIBER LUX laser cutting machine, known for its accuracy and speed, facilitates the creation of precise cuts on various metals commonly used in jewelry making, such as gold, silver, platinum, and more. It enables jewelers to execute complex designs with fine details and intricacies, enhancing the overall quality and aesthetics of jewelry pieces.

TECHNICAL SPECIFICATIONS:-

FIBERLUX PRO 20 FIBERLUX PRO 30 FIBERLUX PRO 50 FIBERLUX PRO 70 FIBERLUX PRO 100
Output Power
20 w
30 w
50 w
70 w
100 w
Wave Length
1064 nm
Accuracy
12 uRad.
Power Supply
230V 50/60 Hz
Absorbed Power
300 w
300 w
300 w
450 w
450 w
Focal 100: Marking Area/Spot
60 x 60 mm / 11um
Focal 160: Marking Area/Spot
110 x 110 mm / 26 um
Focal 210: Marking Area/Spot
160 x 160 mm / 34 um
Speed Of Galvo Head
Up to 7000 m/s
Max Pulse Energy
Up to 1.5 mJ
Max Frequency
1000 KHz
Cooling System
Air Cooled
Pulse Duration
10 to 200 ms
Laser Class
IV
Lite Version Available
Yes
Yes
No
No
No
Weight
55 kg
55 kg
55 kg
60 kg
60 kg
Machine Dimension
L 450 x D 750 x H 670 mm
Working Dimension
L 250 x D 250 x H 350
